2014-2020 Honda Rancher 420 & Foreman 500 Pioneer 500 / 700 1000 P500 P700 White Angel Eye LED Headlights Conversion Kit High Low Beam Replacement Headlamp
For a left and right pair of aftermarket LED Pioneer 1000 headlights. Will mount up to Pioneer 1000 ( some need plug modded) and also can be made to work on 2014-2020 Honda Rancher 420 and 2014-2020 Foreman 500 / Rubicon and 2016-2020 Pioneer 500 / 700.

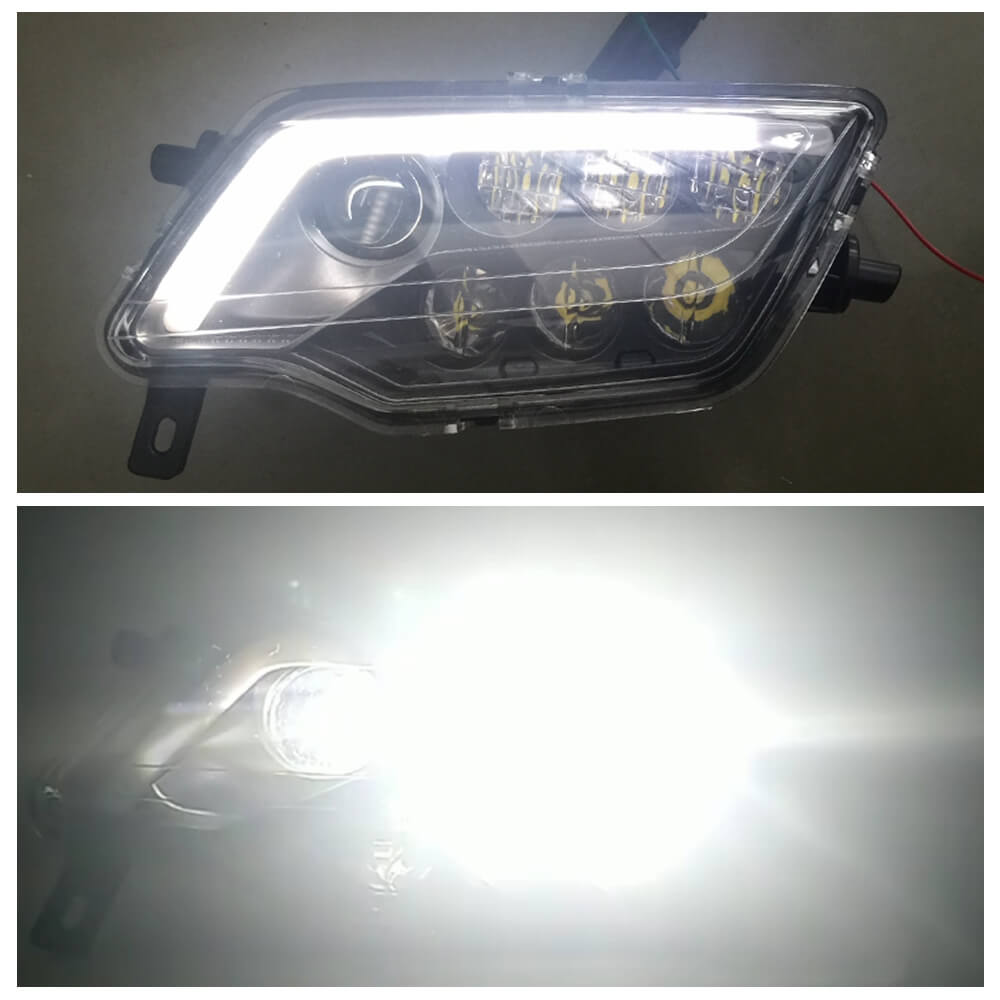

This item 12V LED High Beam Headlight with DRL Angel Eyes
Advanced heat sink technology dissipates heat quickly and efficiently to prolong the lifespan of your lights
Tough scratchproof and UV resistant lens offers you maximum clarity while keeping your lights safe from the elements
Tightly sealed to combat the harshest weather conditions mother nature can throw at you
Durable Pmma Lens
Condition:100% brand new
LED Power: High40W/Low:25W
Voltage: 10-32V DC
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F)
Lumen: 3600LM ( High Beam) / 1800LM ( Low Beam)
Waterproof: IP 67
Face Color：Black / Chrome
Light Color: White
Outer Lens Color Clear
Housing Material Die-Cast Aluminum
Color temperature: 6000K
Replace Oem Number:08v71-hl4-a00
OEM Part Number:
33100-HL4-A11 - LIGHT ASSY, R LED
33150-HL4-A11 - LIGHT ASSY, L LED
Honda Pioneer 1000 SXS1000M3 2016-2020 ( some need plug modded)
Honda Pioneer 1000 SXS1000M5 2016-2020 ( some need plug modded)
Honda Pioneer 500 / 700 2016-2020
Honda Rancher 420 2014-2020
Honda Foreman 500 / Rubicon 2014-2020

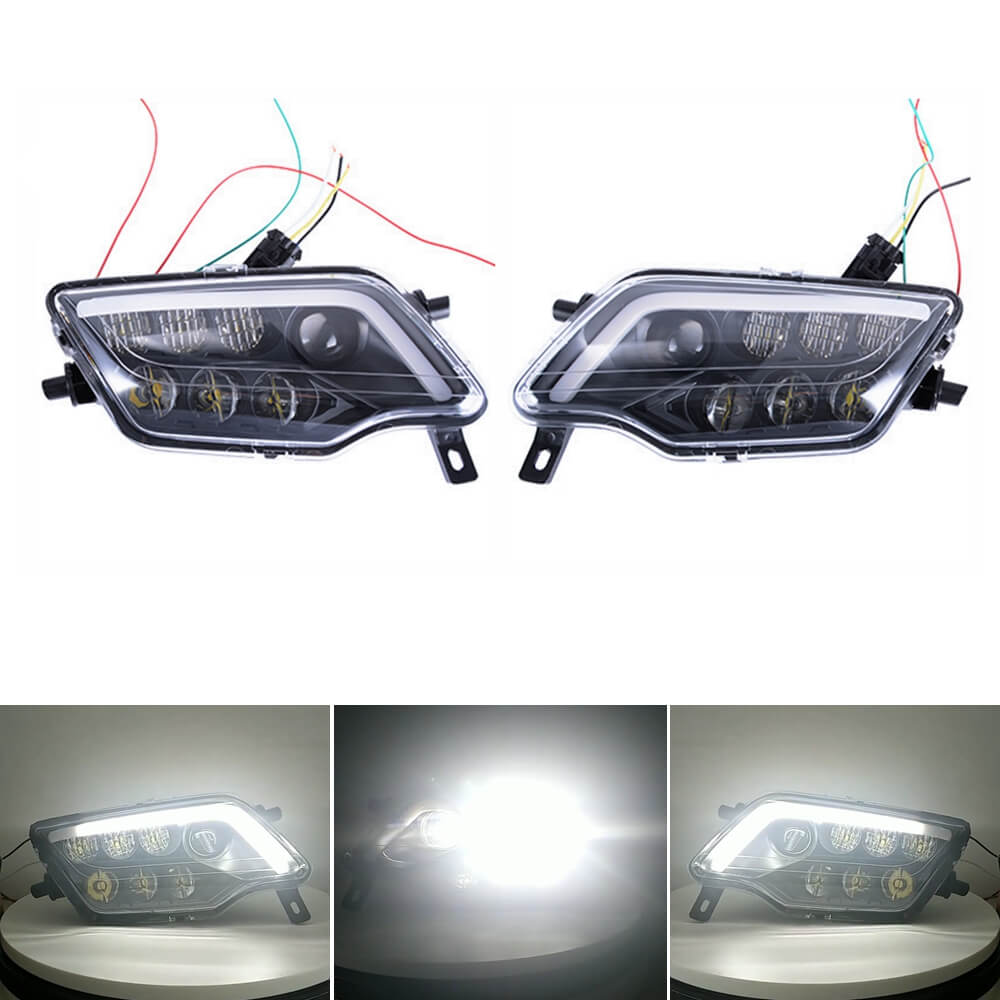

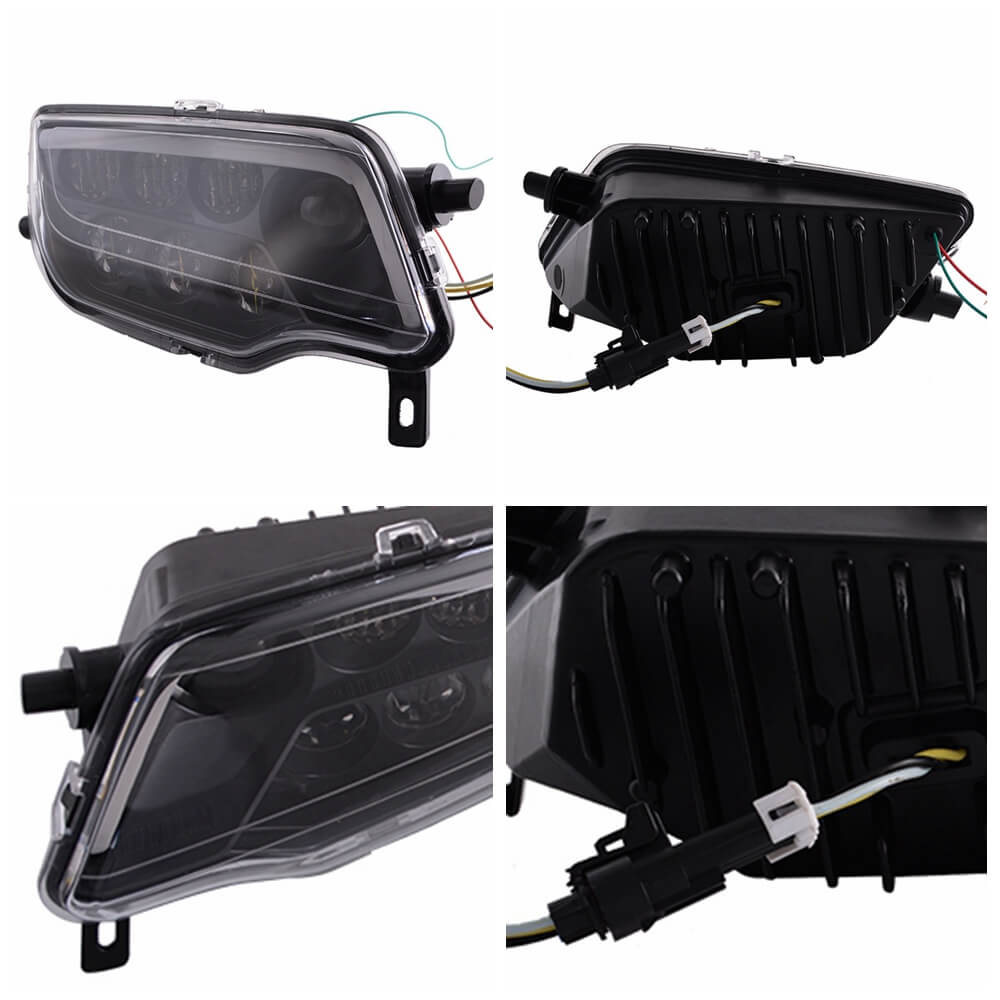

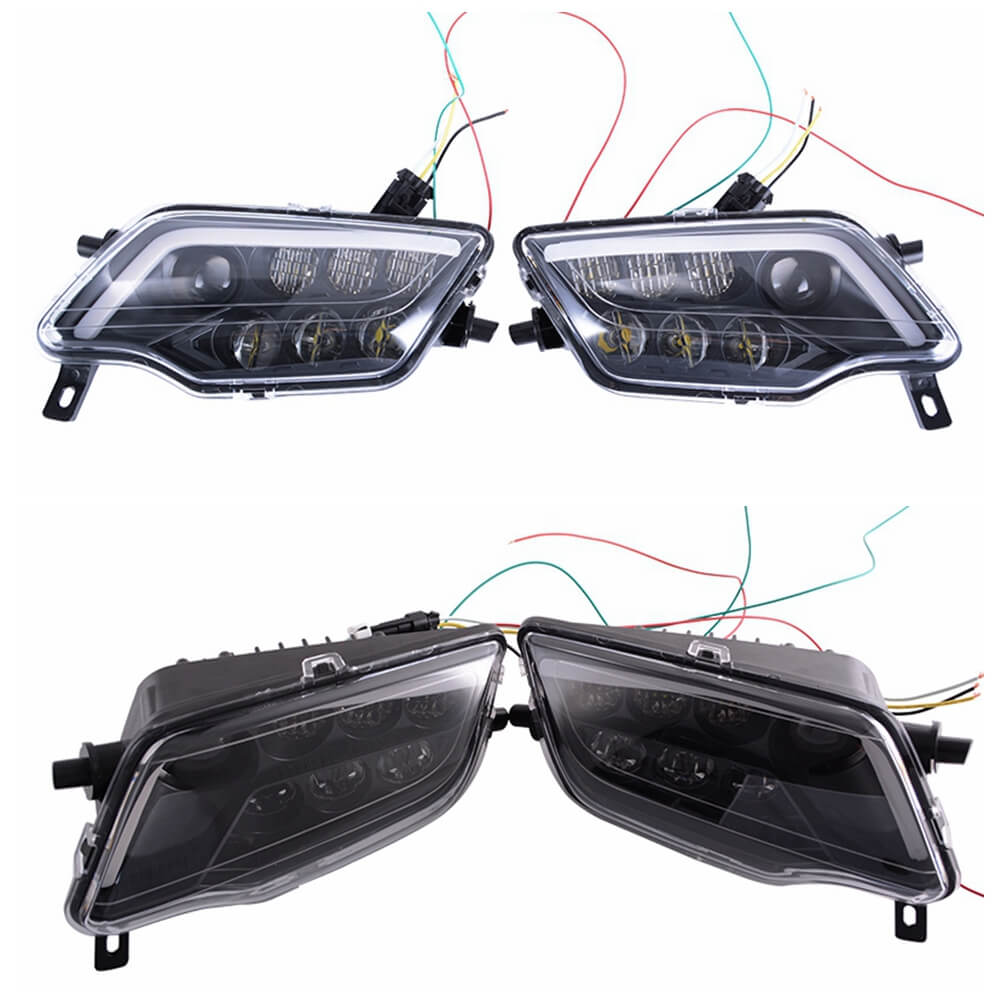

1 Pair Led Headlight (As Picture Shown）
Installation instruction not included
The LED headlight does take little extra work for Pioneer 500/700. More on that below.
**For modification needed the "bucket " that holds lights has the same mounting peg position and same bottom screw but is not deep enough on the inside corner I'm pointing at in the pictures. Will have to heat gun and push out the back corner on your plastic bucket or cut out a section, please see pictures. **
MORE INFO ON CONVERSION BELOW(PASTED FROM HONDA SXS ). THE HEADLIGHT BUCKETS/HOLDERS ALSO NEED MODIFIED... I can't get the full link to paste but more info for swap info is available at HondaSXS .com
Well 700 riders...
Seems the LED lights from the 1000 just might work for you.
A quick comparison from the parts fish show they fit the same outer frame.
Now, We will need someone to give it a test to be sure... Of course you will need a switch and custom wiring but that should be no issue for most DYI'ers.
Please note this is not a direct fit. See below post for modifications.
Parts List. (11-2015, Honda updated pricing)
($190-$250) - 33100-HL4-A11 - LIGHT ASSY,R LED
($190-$250) - 33150-HL4-A11 - LIGHT ASSY,L LED
$.33 - 33106-HL4-A10 - CAP, HEADLIGHT (x4)
$7 - 33130-HL4-A10- SUB HARNESS,HEAD
$40 - 35230-HL4-A01 - Hi/Lo Switch (not required if use your own switch)
